Keep landing lights shining brightly with Seaton Engineering’s MaxPulse landing light controller. This solid state landing light control/pulser is light and compact with a relatively low operating temperature which makes heat sinks unnecessary. It can be used in a variety of capacities including wing and taxi light pulsing as well as single light pulsing – compatible with standard incandescent, halogen, high intensity LED lights, and more.

This compact, lightweight, solid-state landing light control/pulser provides Wig Wag control, wing and taxi light pulsing, and single light pulsing plus hundreds of other DC lighting applications.

• Low operating temperature helps to shave added weight by preventing the need for outboard heat sinks
• Dual circuit construction provides 12-35 VDC with 0-10 amps per circuit
• Small, 1.25-inch diameter size allows users to control up to 10 amps per circuit
• Equipped with #6 ring terminals

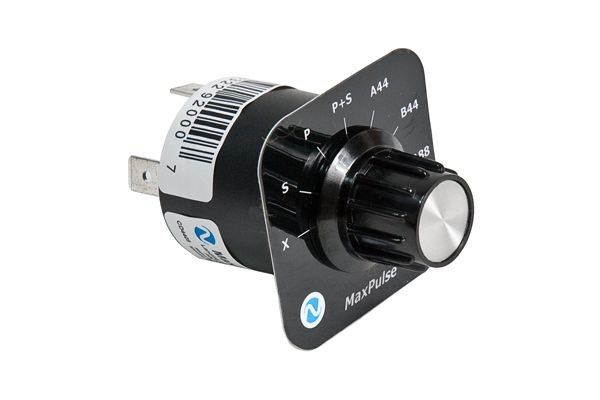

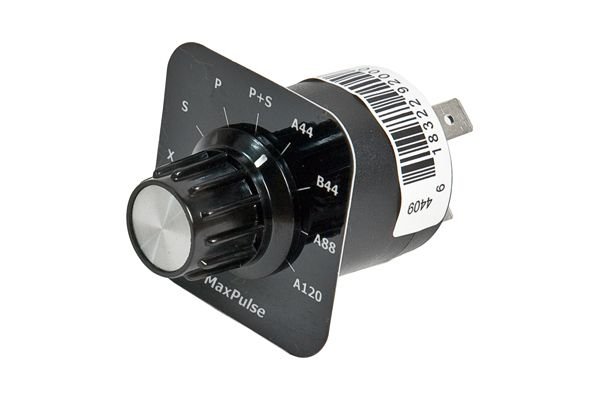

MaxPulse Function Modes:

• X – Both Circuits Off
• S – Starboard (right) on only
• P – Port (left) on only
• S+P – Both circuits On
• A44 – Alternate 44 PPM (STD)
• B44 – Both Flash 44 PPM
• A88 – Alternate 88 PPM
• A120 – Alternate 120 PPM

• Weight: 1 oz

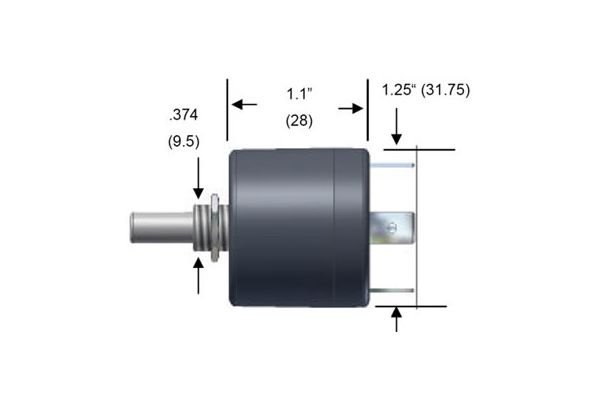

• Diameter: 1.25″
• Voltage range: 12 to 35VDC, up to 700 watts total
• Max current: 10 A per circuit
• Circuits: 2
• Capacity per circuit:
  • 120 watts @ 12 VDC
  • 240 watts @ 24 VDC
  • 280 watts @ 28 VDC
  • 350 watts @ 35 VCD
• Installed with standard supplied solderless crimp ring lug terminals
• Operating temperature range: -30° C to +65° C
• Internal temperature protect: +85° C
• Storage temperature: -40° C to +100° C
• Maximum internal temperature: @ 10 A +25° C above ambient
• Enclosure material: Bayer FR110 resin meets UL 94
• Flame rating: V-2 (0.03in) V-0 (0.059in) 5VB (0.098in) 5VA (0.13in)
• Full STC/PMA
• RTCA/DO-160E Qualified
