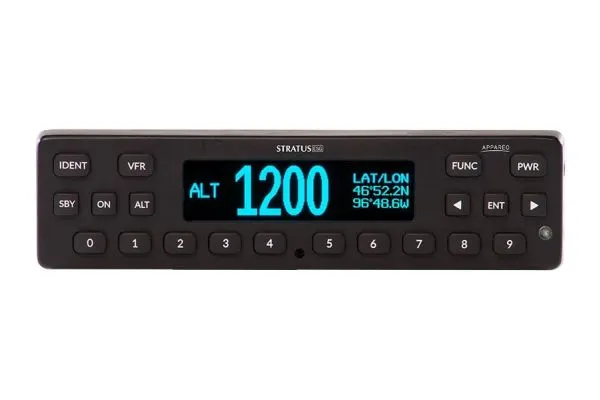

Stratus ESG 1090ES ADS-B Out EXP Transponder, with Install Kit & GPS Antenna
$2,988.00
- Bezel: Height 1.69 in. (43 mm)
- Bezel: Width 6.38 in. (162 mm)
- Depth: 10.75 in. (273 mm) front of panel to connector backshell
- Weight: 3.29 lbs. (1.49 kg) including rack and connectors
- Operating Temperature: -20°C to 55°C
- Storage Temperature: -55°C to 85°C
- Power Input: 9.0 to 36.0 VDC, 15 W typical
- Cooling Input: No fan required
- Environmental Compliance: DO-160G
- Software Compliance: DO-178B Level C
- Hardware Compliance: DO-254 Level C
- TSO Compliance: C112e (Level 2els, Class 1); C145d (Class Beta 1 GPS/WAAS); C166b (Class B1S)
- Display: OLED
- Transmitter Power: 310 W
Stratus ESG 1090ES ADS-B Out Transponder, with Install Kit & GPS Antenna, by Appareo
For Use in Experimental Aircraft Only
2020 COMPLIANCE IN ONE BOX
Stratus ESG is a transponder that provides 2020 compliance in one box. It’s a 1090 MHz extended squitter (ES) transponder with built-in WAAS GPS. Designed to replace legacy transponders, Stratus ESG is a solid state transmitter that provides 310 watts nominal power output. Its modern keypad makes entering a squawk code easy. The convenient VFR button minimizes pilot keystrokes.
SIMPLE INSTALLATION
Stratus ESG is a form-factor replacement for existing transponders, such as the popular KT 76A/C, so installation is more time-efficient compared to remote boxes that need to be integrated with your old transponder. A TSO’d WAAS GPS antenna is included in the kit, and Stratus ESG can reuse an existing transponder antenna. It also accepts both serial and parallel (e.g. Gray code) inputs, so you can reuse most altitude encoders.
WHAT TO CONSIDER WHEN ESTIMATING INSTALLATION
- Replace old transponder in panel
- Reuse existing transponder antenna
- Reuse existing altitude encoder
- Install WAAS GPS antenna (included in the kit)
FEATURES
- 1090ES (Mode S extended squitter)
- Built-in WAAS GPS
- Meets global mandates for ADS-B Out transponders
- Push-button operation
- Easy-to-use interface
- Pressure altitude monitor
- Bezel: Height 1.69 in. (43 mm)
- Bezel: Width 6.38 in. (162 mm)
- Depth: 10.75 in. (273 mm) front of panel to connector backshell
- Weight: 3.29 lbs. (1.49 kg) including rack and connectors
- Operating Temperature: -20°C to 55°C
- Storage Temperature: -55°C to 85°C
- Power Input: 9.0 to 36.0 VDC, 15 W typical
- Cooling Input: No fan required
- Environmental Compliance: DO-160G
- Software Compliance: DO-178B Level C
- Hardware Compliance: DO-254 Level C
- TSO Compliance: C112e (Level 2els, Class 1); C145d (Class Beta 1 GPS/WAAS); C166b (Class B1S)
- Display: OLED
- Transmitter Power: 310 W
